管式电池负板分切机

用途
管式电池负极板用合金锯片分片，切除两边挂耳，机器可一分二、一分三、一分四，操作简单，工作效率快，配有吸尘口下面有废料收集装置。
Purposes
The negative plate of the tubular battery is divided with an alloy saw blade, and the two hanging ears are cut off. The machine can be divided into two, three, and four. The operation is simple, the work efficiency is fast, and there is a waste collection device under the suction port.

技术参数 Technical Parameter

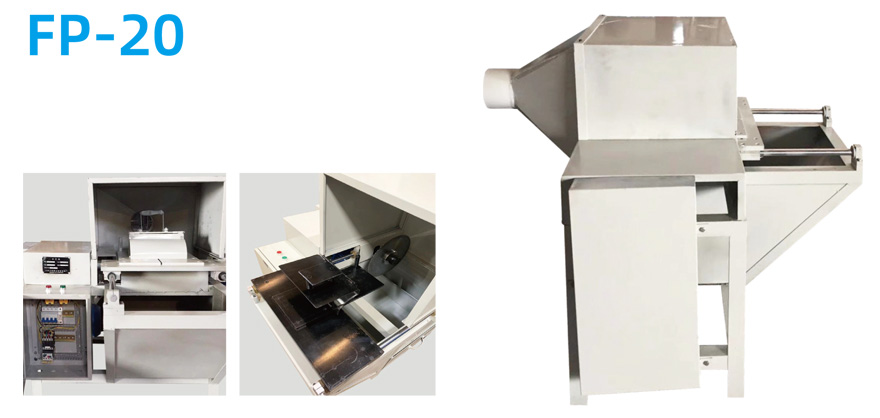

型号 Model	FP-20 型
总质量 Total mass	160kg
电机型号 Motor model	YE3-90S
功率 Power	N=2.2kw
转速 Rotating speed	n = 2100r/min
分切生产率 Slitting productivity	100 片 -120 片／分钟
合金锯片尺寸 Alloy saw blade size	100Z 1.6厚
直线轴承型号 Linear bearing model	CSC20
主轴轴承型号 Spindle bearing model	P208
机器外形尺寸 Machine dimensions	L1000mmxW1000mmxH1200mm
上侧吸尘口直径 Diameter of upper suction port	150mm
