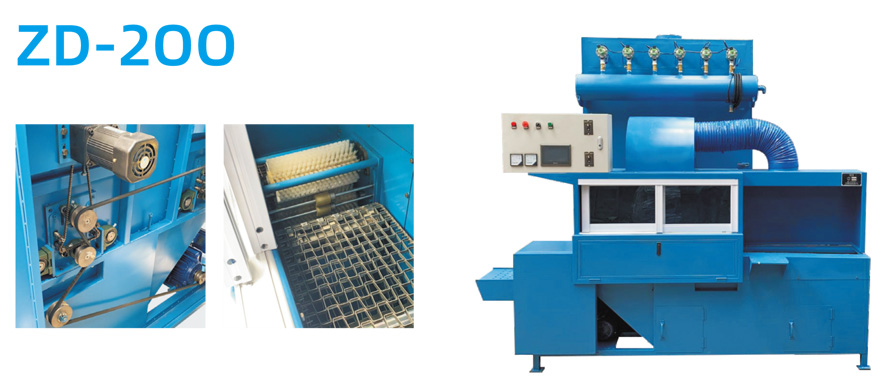

管式电池正极板自动刷片机

工作原理
封好底（扣底）极板人工放在不锈钢网带上面，自动输送经过牛筋棍后通过上下毛刷，自动刷片毛刷相对旋转，板子经过后无死角全部清理表面铅粉，扬起的粉尘由除尘管道吸走，后可以利用，除尘一系统由脉冲、布袋、风机、管道为一体放在主机正后方，收尘系统由 PLC控制，共为六个脉冲除尘，每个脉冲反应时间，脉冲故障，主机故障均在触摸屏上反应，风机为5KW板栅经过毛刷以后，后面有一排0.7孔气吹一下，保证了极板表面无铅尘，再由输送带送出机身后由一人整理（一人放片，一人收片）工作效率高。

working principle
After sealing the bottom (bottom), the pole plate is manually placed on the stainless steel mesh belt, automatically conveyed through the beef tendon stick, and then passed through the upper and lower brushes, and the automatic brush blade and brush rotate relatively. The dust is sucked by the dust removal pipeline and can be used later. A dust removal system consists of pulses, cloth bags, fans, and pipes as the body and is placed directly behind the host computer. The dust collection system is controlled by PLC.
There are six pulse dust removal systems in total. The response time of each pulse, pulse failure, and host failure are all reflected on the touch screen. Lead-free dust, and then sent out of the body by the conveyor belt, one person arranges it. (One person puts the film, one person receives the film) High working efficiency.

技术参数 Technical Parameter

型号 Model	ZD-200型
总质量 Total Mass	1400kg
除尘风机型号 Dust Removal Fan Model	4-72
不锈钢网带型号 Stainless Steel Mesh Belt Model	316 材质 3-300 型
整机总功率 The Total Power ofThe Whole Machine	6kW
脉冲阀型号 Pulse Valve Model	1 寸 DC24V
脉冲间隔时间 Pulse Interval	0.1 S-99S可调
外形尺寸 Dimensions	长 2800mmx宽2600mmx 高 2500mm
工作效率 Work Efficiency	每分钟网带行走28m
